2.13 A C Sort Exampleto Put It All Together

Swap C code를 assembly code로 바꾸기 !

void swap(int v[], int k)
{
 int temp;
 temp = v[k];
 v[k] = v[k+1];
 v[k+1] = temp;
}



The Procedure swap

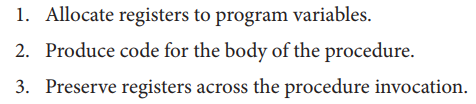

3 steps of C to assembly code



Register Allocation for swap



v : $a0, k : $a1

temp : $t0



Code for the Body of the Procedure swap



v의 array에 접근하기 전 ! int는 4bytes 이므로 k * 4를 수행해 접근해야한다 !

sll   $t1, $a1,2     # reg $t1 = k * 4
add   $t1, $a0,$t1   # reg $t1 = v + (k * 4)
                     # reg $t1 has the address of v[k]

lw    $t0, 0($t1)    # reg $t0 (temp) = v[k]
lw    $t2, 4($t1)    # reg $t2 = v[k + 1]
                     # refers to next element of v

sw    $t2, 0($t1)    # v[k] = reg $t2
sw    $t0, 4($t1)    # v[k+1] = reg $t0 (temp)



The Full Swap Procedure

swap: sll   $t1, $a1, 2
add   $t1, $a0, $t1
lw $t0, 0($t1)
lw $t2, 4($t1)
sw $t2, 0($t1)
sw $t0, 4($t1)
jr    $ra



The Procedure sort

void sort (int v[], int n)
{
    int i, j;
    for (i = 0; i < n; i += 1) {
        for (j = i – 1; j >= 0 && v[j] > v[j + 1]; j =1) {
        	swap(v,j);
        }
    }
}



Register Allocation for sort



v : $a0, n : $a1

i : $s0, j : $s1

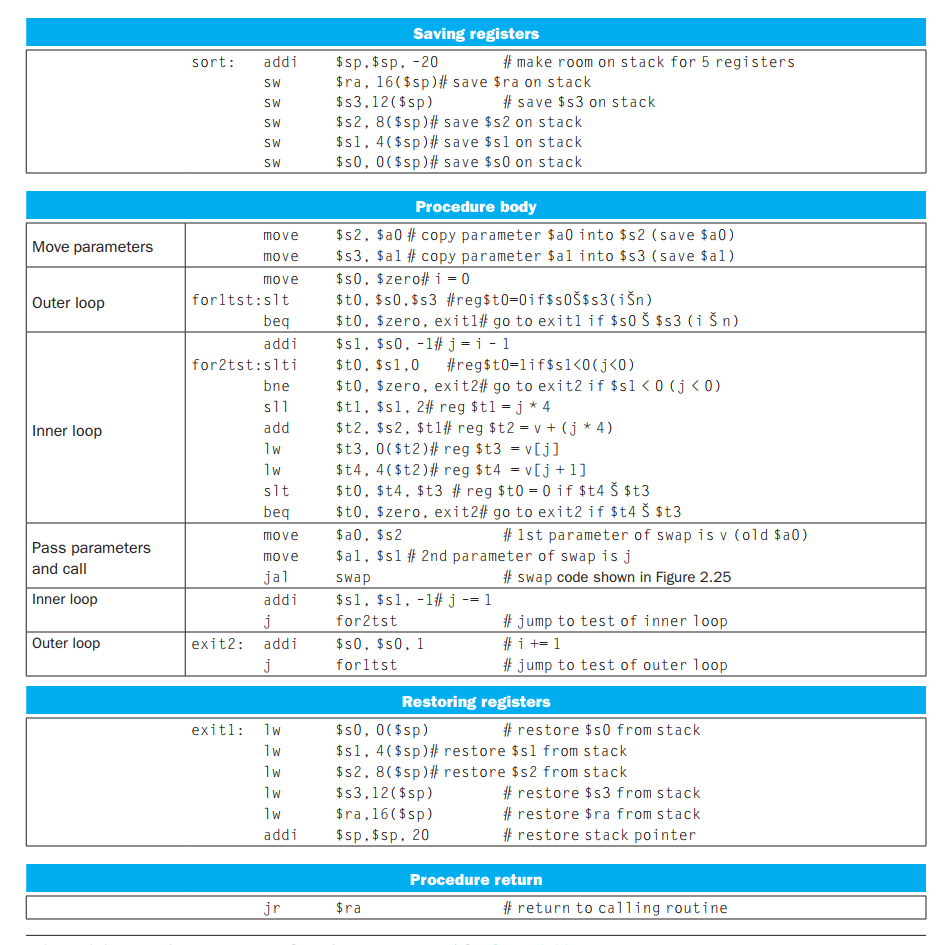

The Full Procedure Sort

Sort assembly code

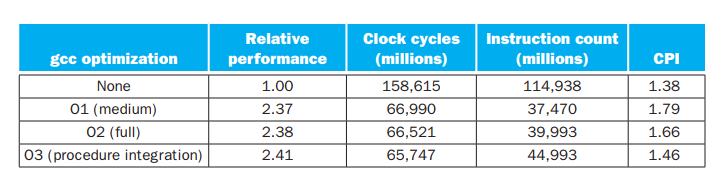

Performance of versus gcc optimization

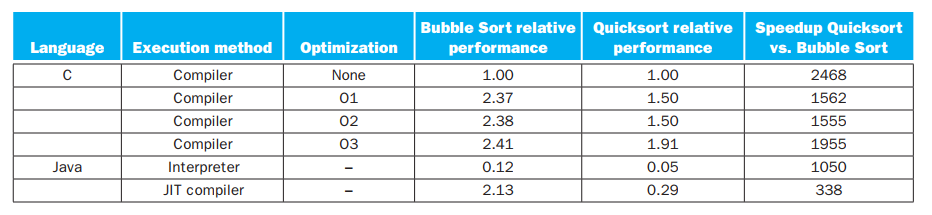

Compare the performance of C vs Java
